Mini Copper Zinc Aluminum Mixture Scrap Metal Flotation Equipment

Start the entire process, and after washing with water, the raw materials are transported to the first flotation stage. At this stage, the diameter of the main drum used for flotation is 2.6 meters, and a heavy medium is added to it to create a 2.0 density environment in the chamber. Under this specific condition, substances such as aluminum with adhesive, sponge, and high magnesium material can be separated from the raw materials. After completing the first stage flotation, the material immediately enters the second stage flotation step. Also equipped with a main engine bucket with a diameter of 2.6 meters, but the density of this level of warehouse is adjusted to 3.0. Taking advantage of this density difference, aluminum and copper zinc materials are separated. After two stages of flotation, the product enters the final stage of classification and collection. Depending on the density, the products are classified into three compartments: Low density warehouses are used to store magnesium alloys, as well as lightweight materials such as rubber, plastic, and wood; The medium density warehouse is specifically designed to collect aluminum; High density warehouses gather high-density mixed non-ferrous metals such as copper and zinc.

Equipment introduction: Fill the heavy medium with a barrel with a diameter of 2.6 meters to form a medium with a density of 2.0/3.0 in two compartments. Separation principle: Based on the density of different metals such as copper, zinc, aluminum, stainless steel, etc., they are floated and separated. Final product distribution: The final separated products are divided into three warehouses based on density: Low density warehouse: magnesium and other lightweight materials, such as heavy-duty plastics. Medium density warehouse: aluminum. High density warehouse: copper, zinc, stainless steel, and high-density metals.

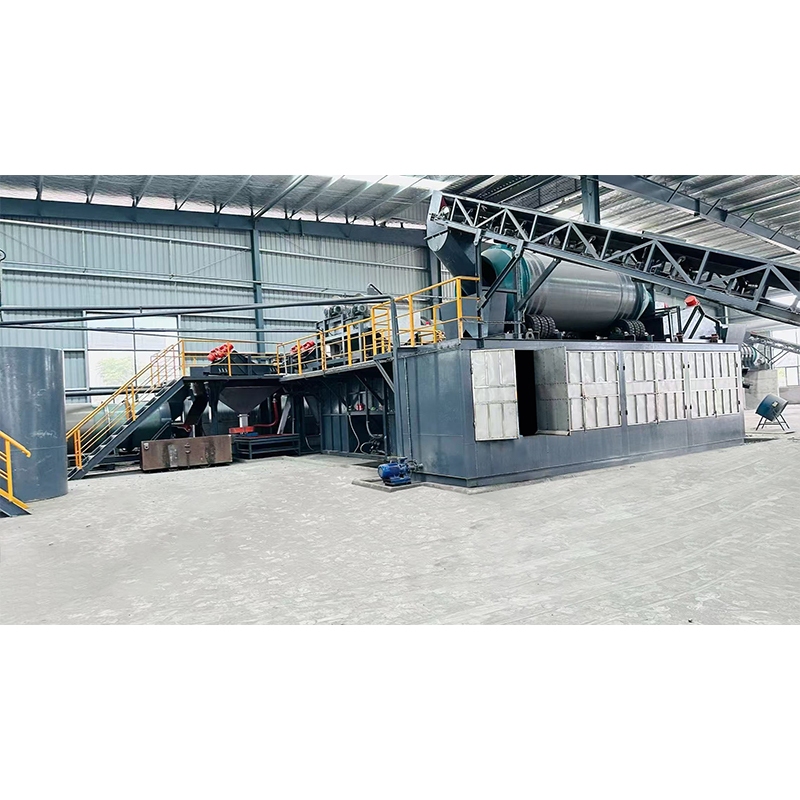

Flotation-Mini: A 2.2-meter diameter barrel is filled with heavy medium to form a density of 2.0/3.0 in two compartments, separating and floating mixed metals such as copper, zinc, aluminum, and stainless steel according to their own density. Unlike large-scale flotation, this model is more suitable for customers with a monthly production capacity of 3000-4000T. Small flotation uses magic fast installation, which is convenient to install, occupies a small area, and consumes less energy.   The final separated product consists of three warehouses: Low density: magnesium alloys and other lightweight materials such as rubber, plastic, and wood; Medium density: Aluminum High density: high-density mixed non-ferrous metals such as copper and zinc.
