ECS sorting scheme

The eddy current separator is designed based on the principle that conductors can generate induced currents in high-frequency alternating magnetic fields. When working, a high-frequency alternating strong magnetic field is generated on the surface of the sorting magnetic roller. When conductive non-ferrous metals pass through the magnetic field, eddy currents are induced inside the non-ferrous metals. This eddy current itself generates a magnetic field in the opposite direction to the original magnetic field. The non-ferrous metals are then thrown forward along their transport direction due to the repulsive force of the magnetic field, thereby achieving separation from other non-metallic substances and achieving the purpose of sorting.

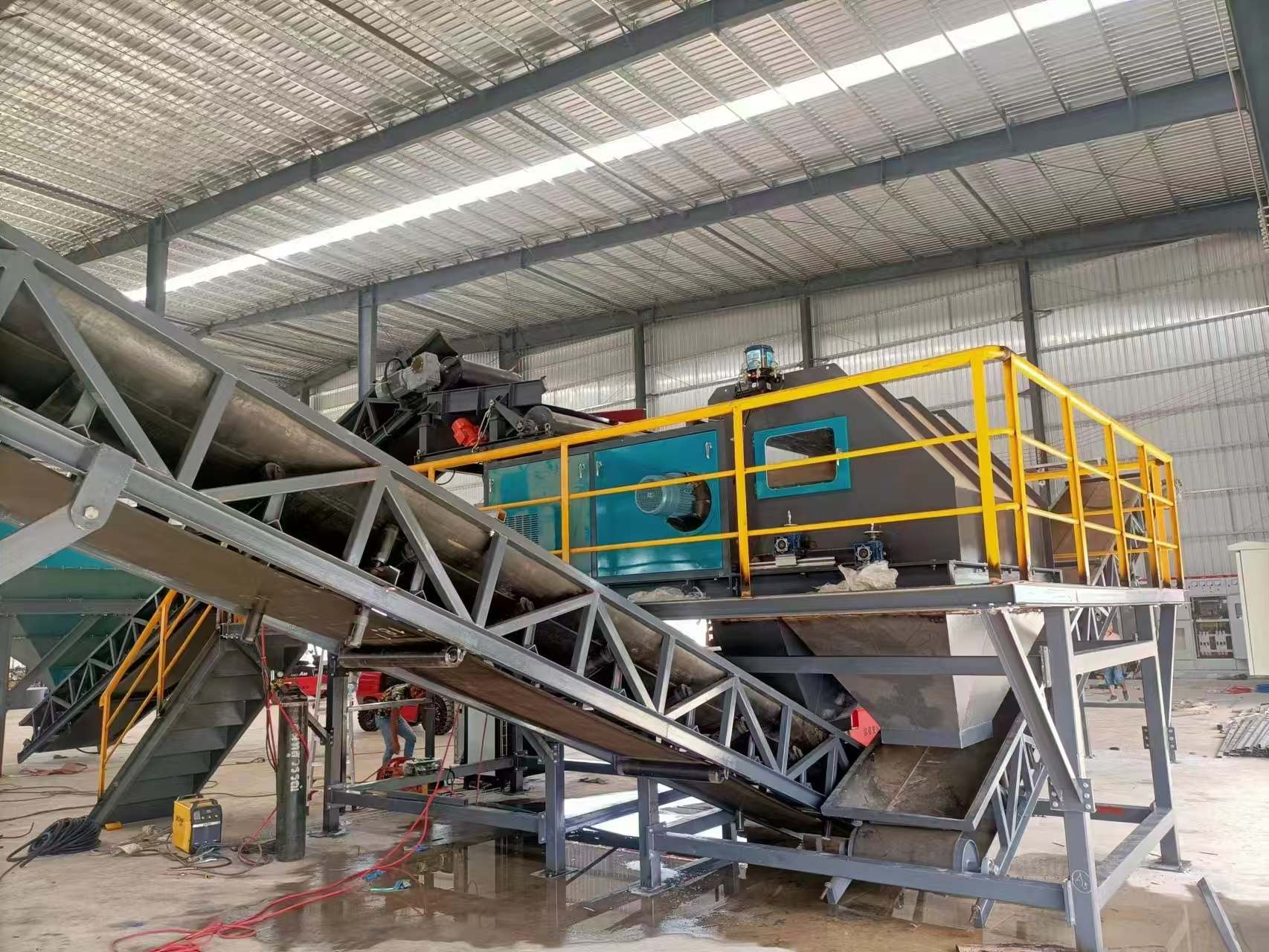

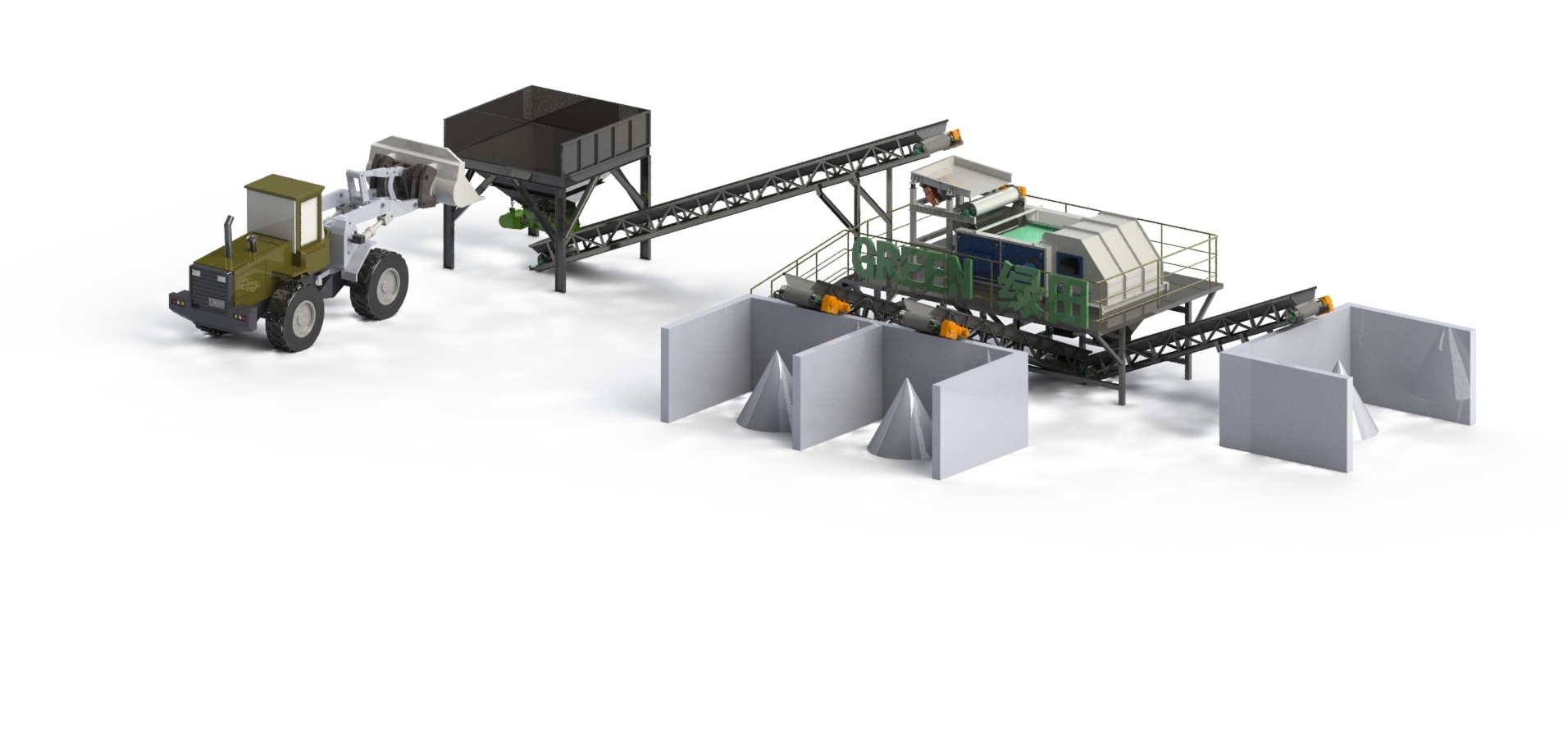

The non-ferrous metal sorting machine consists of two parts: the sorting machine theme and the control cabinet; The main body mainly consists of the selection assembly, drive motor, frame, and cover. The core components of the sorting assembly equipment consist of optional rollers and material conveying systems (including material conveying belts, conveyor belt driven rollers, and reduction motors).
